TT-JAX ( .173" ) CONNECTORIZED JACKFIELDS
FAX: 773 792-2129
JACK PANELS
?
* Please visit the product pages on our website for the most up-to-date product information
TT-JAX ? (.173") CONNECTORIZED JACKFIELDS –
SERIES TT, 2-WIRE, 4-WIRE, 6-WIRE
221

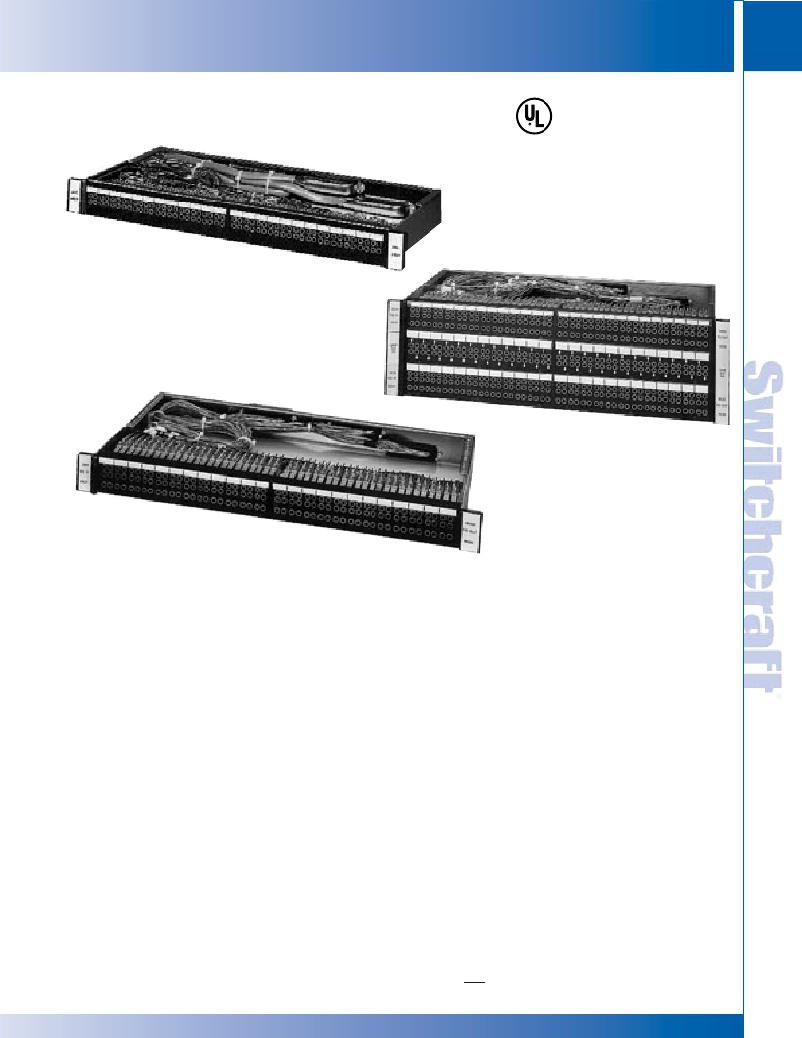

2-wire TT-Connectorized Jackfield
TT2W48VCF1
4-wire TT-Connectorized Jackfield
TT4W24MCF1
2-WIRE TT-CONNECTORIZED JACKFIELDS, SERIES TT
Contains 48, 2-wire circuits. Arrangements include:
LINE-DROP or Signal E/M, or LINE-DROP-MON. Available
with MONITOR jack row. On rear panel, LINE connectors are
receptacles and DROP connectors are plugs. LINE and DROP
circuits may be isolated from each other for separate monitoring.
On special order, 48 circuits LINE/COMBINATION DROP/MON
or 96 circuits, LINE/DROP or Signal E/M may be specified.
2-WIRE TT-CONNECTORIZED PC JACKFIELD,
SERIES TTPC
Same as 2-Wire TT-connectorized jackfields above, except all
connections are machine-soldered on a double-sided PC
board instead of hand wired.
4-WIRE TT-CONNECTORIZED JACKFIELDS,
SERIES TT
4-Wire jackfields have 24, 4-wire circuits for MOD-DEM/EQ
IN-EQ OUT/MON patching, or may be used for other 4-wire
patching applications. Can be supplied with or without
MONITOR jack row. On rear panel, MOD AND EQ IN
connectors are receptacles and DEM and EQ OUT
connectors are plugs.
6-wire TT-Connectorized Jackfield
6-WIRE TT-CONNECTORIZED JACKFIELDS,
SERIES TT
6-Wire jackfields contain 48, 6-wire circuits for MOD-DEM/EQ
IN EQ OUT/MON/SIG LINE/SIG EQ patching with toll test
boards. Available with or without MONITOR jack row. On rear
panel, MOD, EQ IN and SIG LINE connectors are receptacles
and DEM, EQ OUT and SIG EQ connectors are plugs. The
following can be specified on special order: 12 circuits,
DEM-MOD/EQ IN-EQ OUT/MON/SIG E/M; 48 circuits, signal
E/M leads separated; 48 circuits for D3 channel banks.
ORDERING
1. Order by part number from tables.
2. Contact Switchcraft for any special order items.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
